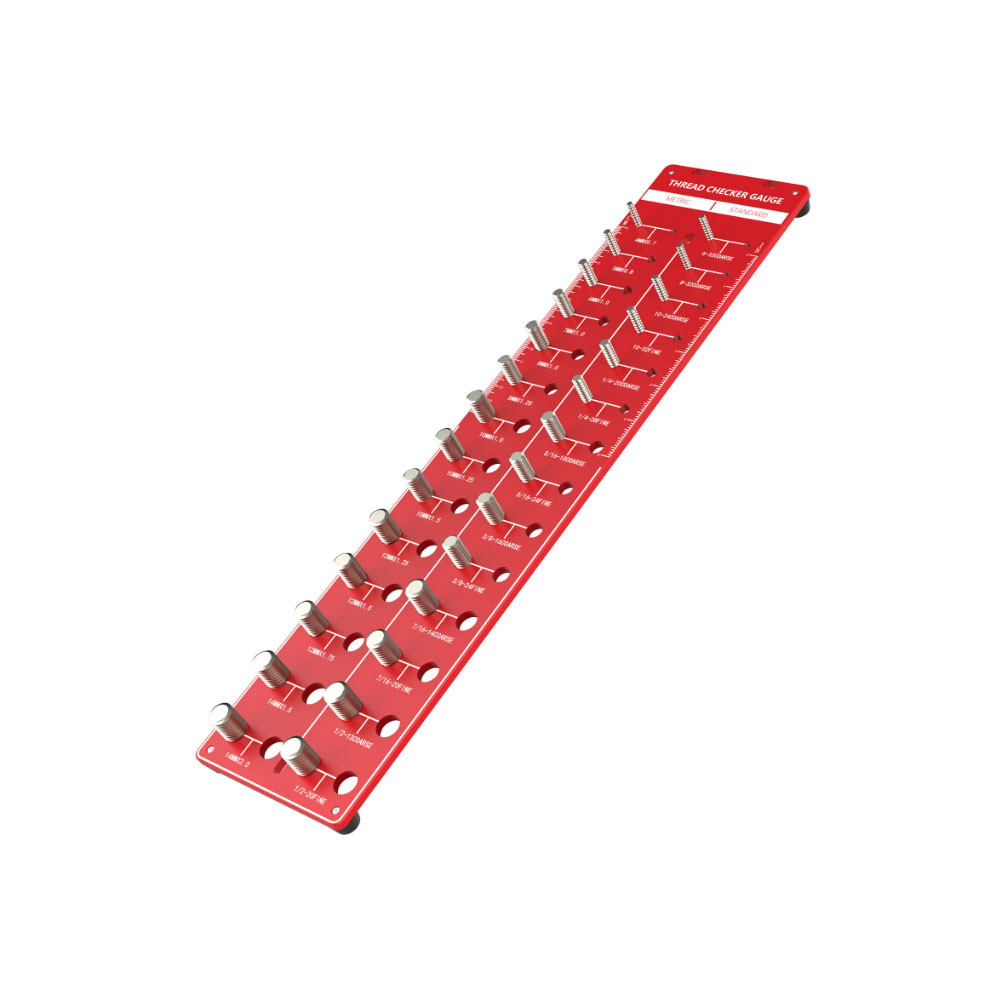

NEW 2503 28 Hole Screw Nut and Bolt Thread Checkers 9061

NEW 2503 28 Hole Screw Nut and Bolt Thread Checkers 9061

Material: Stainless steel

Metric thread sizes: 4 mm x 0.7; 5mm x 0.8; 6mm x 1.0; 7mm x 1.0; 8mm x 1.0; 8mm x 1.25; 10mm x 1.0; 10mm x 1.25; 10mm x 1.5; 12mm x 1.25; 12mm x 1.5; 12mm x 1.75; 14mm x 1.5; 14 mm x 2.0
Imperial threads: 6-32 FINE; 8-32 FINE; 10–24 COARSE; 10-32 FINE; 1/4–20 COARSE; 1/4-28 FINE; 5/16-18 COARSE; 5/16-24 FINE; 3/8–16 COARSE; 3/8-24 FINE; 7/16-14 COARSE; 7/16-20 FINE; 1/2–13 COARSE; 1/2-20 FINE
Easy to Use: Our Thread Identifier Gauge features more compact size (40x10cm), easy to hold with one hand. The surface features clear and easy-to-read metric and imperial measurements laser-etched,
and scales on both sides make it easy to quickly measure screw lengths
Sturdy: The screws are made of 304 stainless steel and the body is made of lightweight 5052 aluminum for long-term use. The back plate is up to 5mm thick and solid
Friendly Design: The four corners are rounded, and the attached hanging holes are convenient for storage and portability. There are no abrupt protrusions on the back, so it can be placed stably on the table or the ground/wall for use

HS:7326909000
SKU:#IV#30-40-61 9061 28 Hole Thread Checker
EAN:5056736167901
